Q: What is the distance from the wall to the inside of the door?

A: The distance from the wall to the inside of the door can be calculated using the following formula: (2-1/4") - (thickness of door). For example, if your door is 1-1/2" thick then you will apply the following formula: (2-1/4") - (1-1/2") = 3/4". In this example the distance between the wall and the inside of your inner door is 3/4".

Q: What is the distance from the wall to the outside of the door?

A: The distance from the wall to the outside of the door is 2-1/4”.

Q: What size are the lag bolts and the spacers for mounting the track?

A: The lag bolt is 3 3/4 inches long. The spacer is 1 3/8 inches tall.

Q: What is the material of the roller wheel?

A: The roller wheel is made of nylon to minimize rolling noise

Q: What is the width and thickness of the track?

A: The width is 1 1/2'' and the thickness is 1/4''.

Q: What is the distance between outside of inner door and inside of outer door (assuming a 1-1/2″ thick door) for the bypass setting?

A: 4-1/16'' - door thickness = 4-1/16'' - 1-1/2'' = 2-9/16''

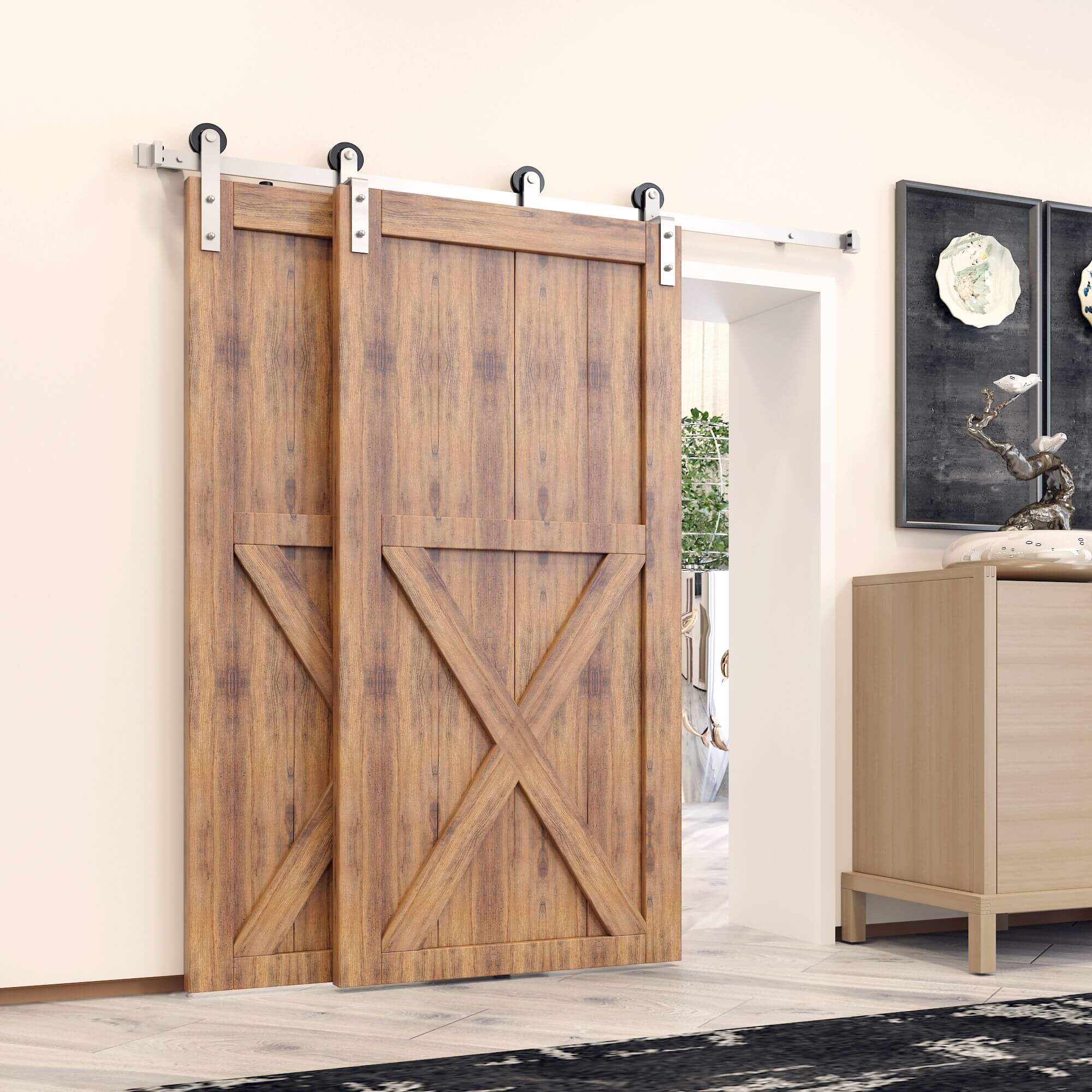

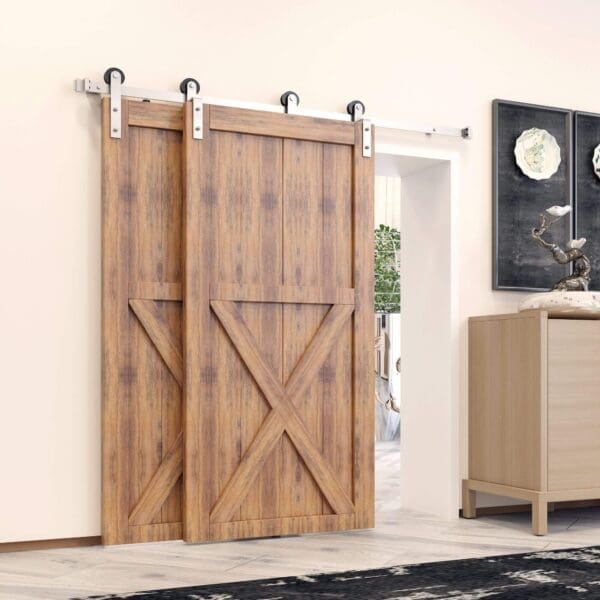

Double Door Bypass Hardware - Lakeside Barn Doors

Description

Have two Doors overlap on a single track? Why not? We introduce to you the single track bypass! This Hardware system is great for those who want a simple installation and a lower clearance. Doesn’t that sound fantastic? Read On for more information about this spectacular hardware.

Features

Smooth and Silent Rolling
Less Clearance
Less Bulky
Sturdy
Indoor/Outdoor
Anti Scratch

Additional information

Finish	Black Rustic, Brushed Nickel
Length (Ft)	6, 6.6, 7, 7.5, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20

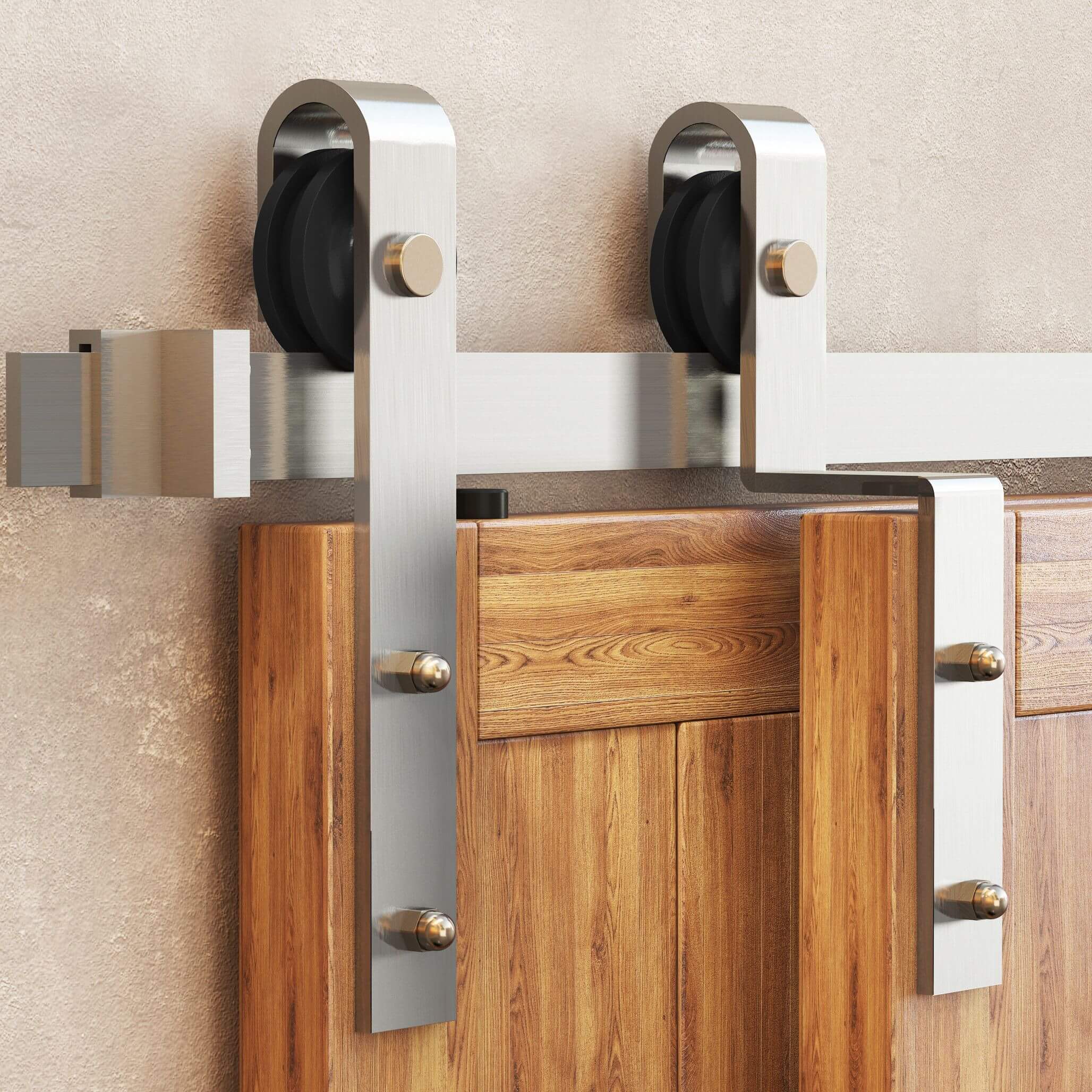

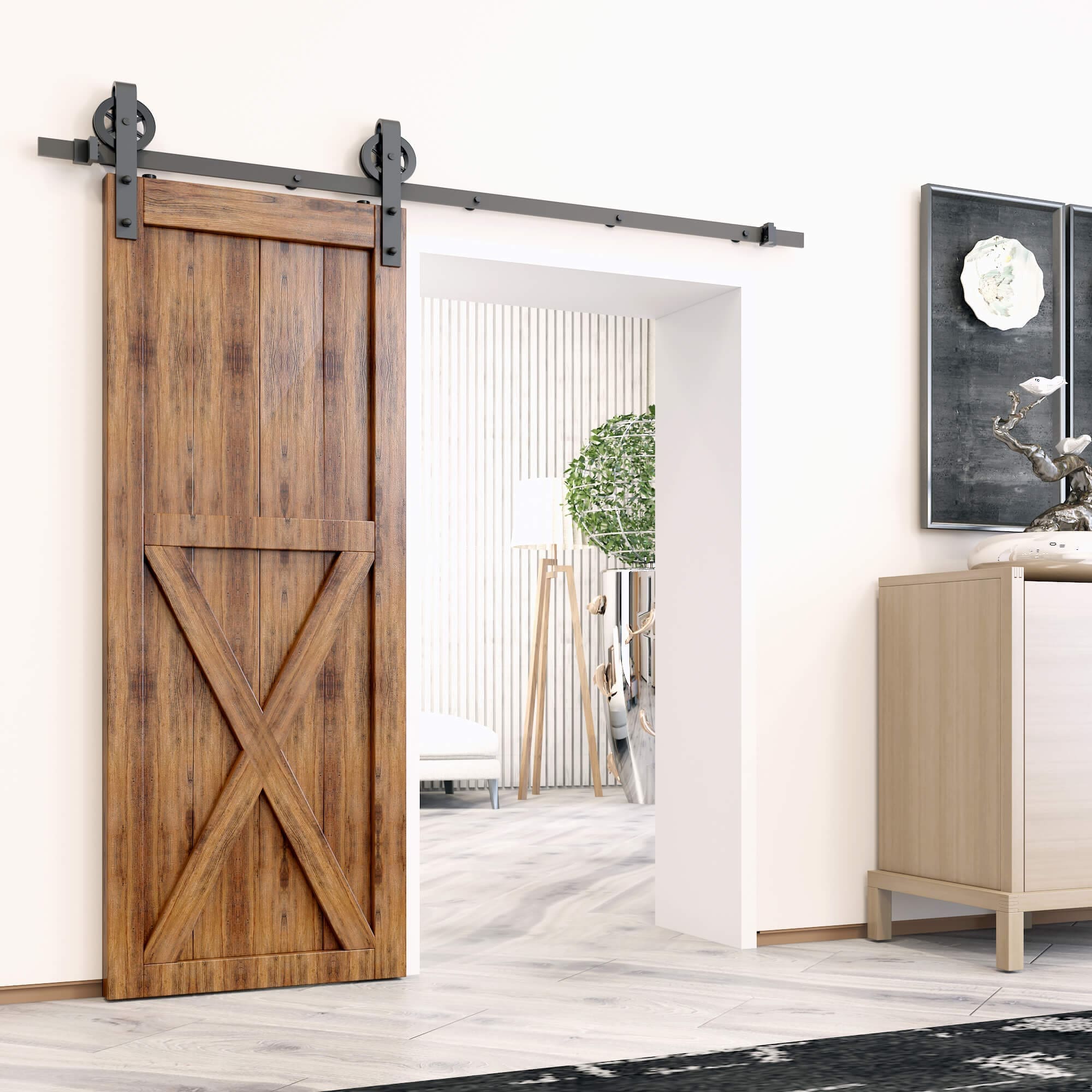

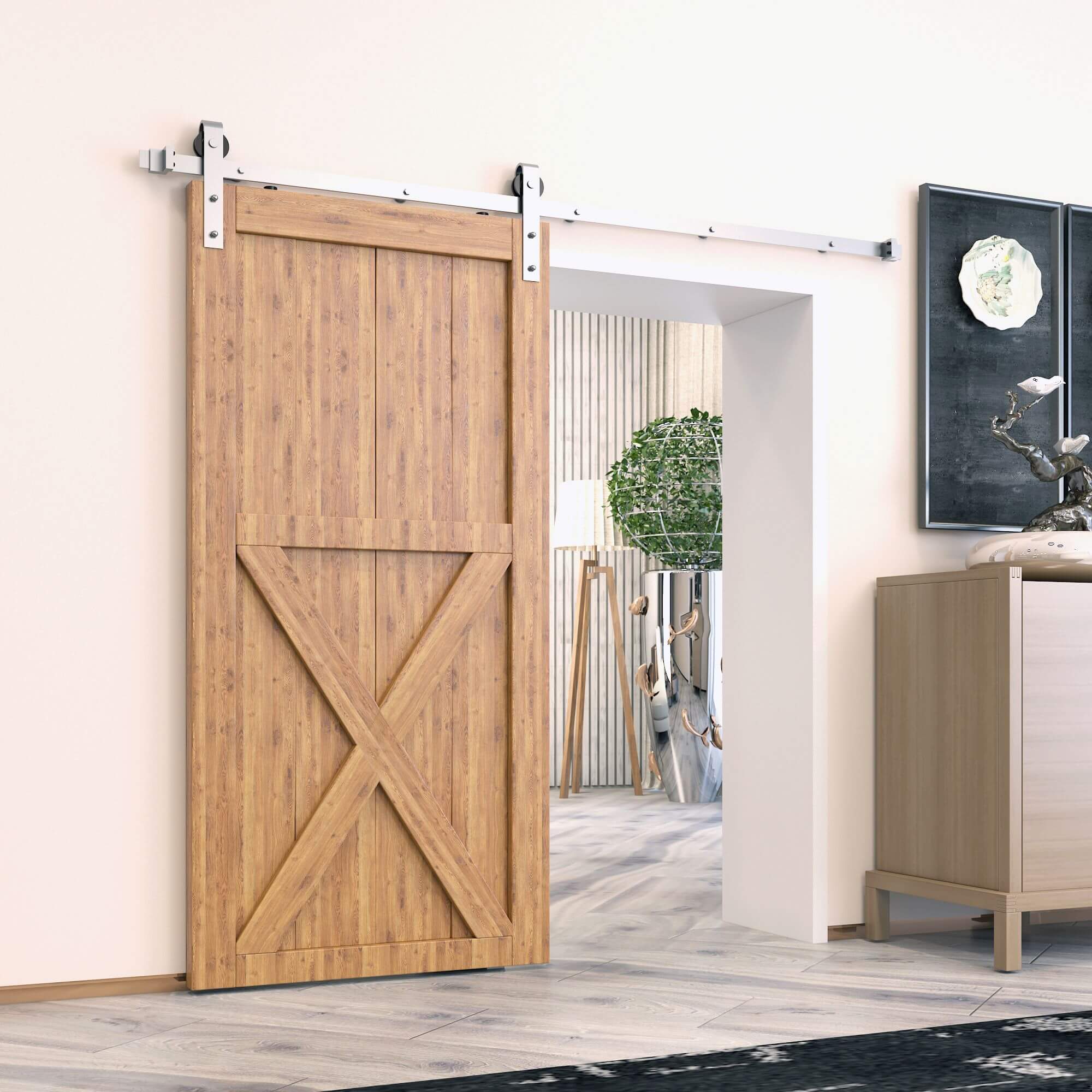

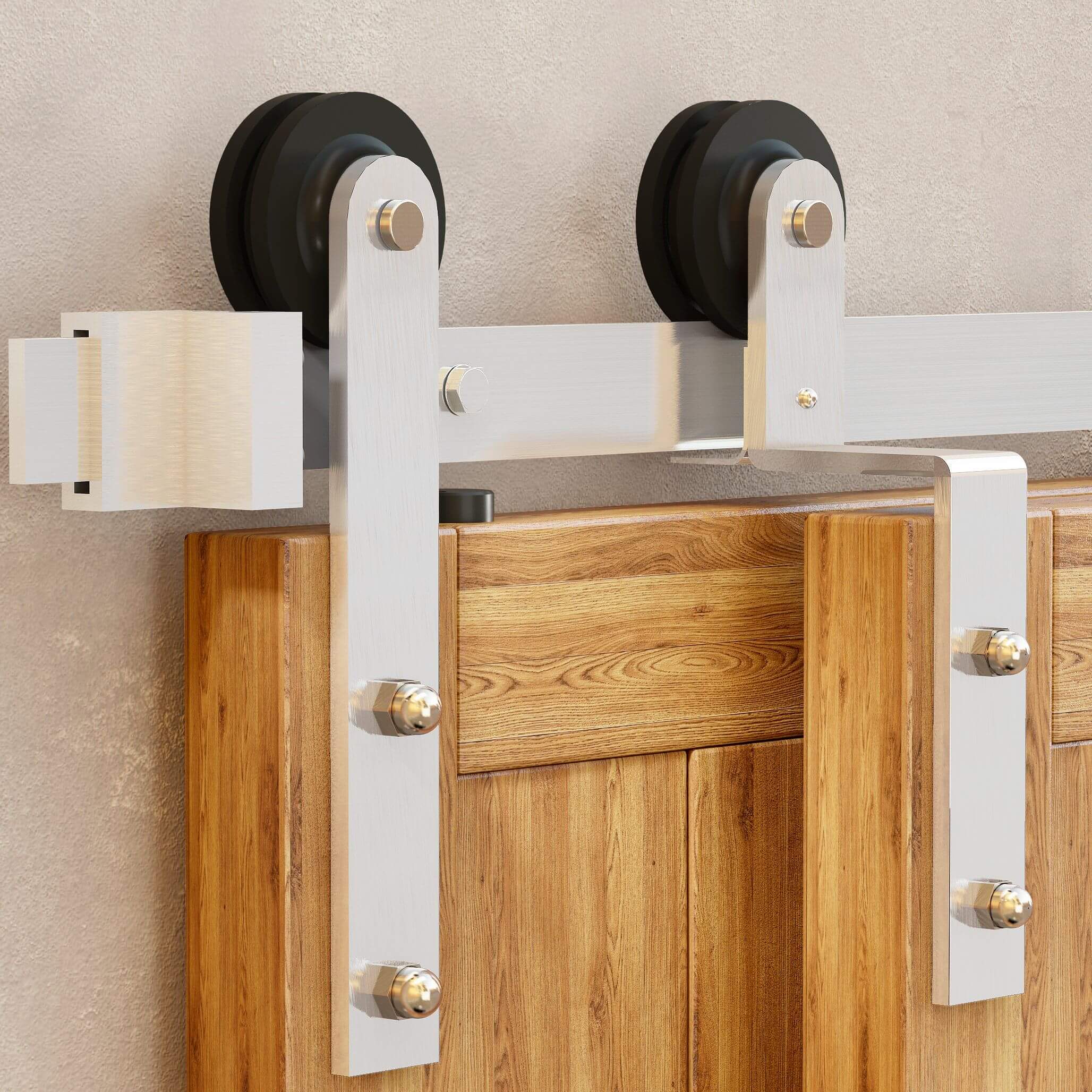

Roller Design	Classic, Straight, Spoke Wheel

Shipping

All orders are shipped within the United States (except for Hawaii and Alaska).

Things To Know

Spacer Extender Usage

All Returns

There is a 30-day return window from the time you receive your order. We offer free return for any defective orders. All custom orders may not be returned, if a custom order is returned we will have the right to not issue a refund.
